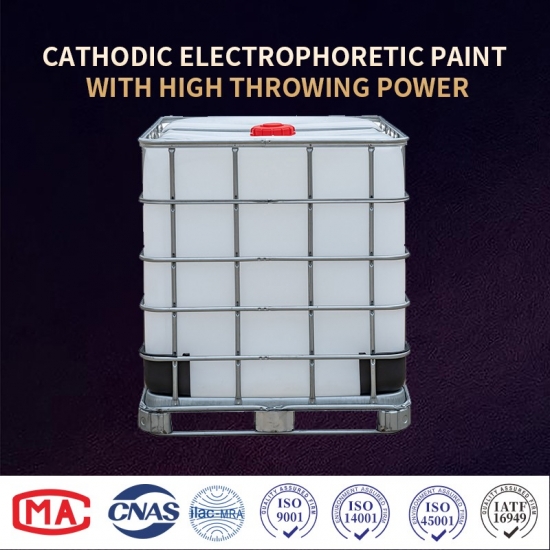

Cathodic electrophoretic paint with high throwing powe

  • Brand:

  • Product origin:

  • Min order:


product description
This product is a kind of  water-based paint. The main resin is composed of ketimine modified epoxy resin, isocyanate crosslinking agent and special toughening agent, which is neutralized by acid to form an emulsion. Dispersed resin composed of modified epoxy resin and isocyanate, with pigments and fillers, is ground to make color paste.

◆The coating film is smooth, smooth and plump;
◆The top coat has good compatibility, and the adhesion of the bottom paint will not decrease due to over-baking;
◆The ability of the membrane on the inner cavity is outstanding, and the swimming penetration of the four boxes is ≥55%;
◆Excellent salt spray performance, neutral salt spray test ≥1000 hours (unilateral expansion at the marking point <2mm);
◆It does not contain any heavy metals and tin elements, and it is fully compliant with ROHS directives and EPA pollutant control regulations after SGS testing.

Application field
Auto parts: steel rims, jacks, etc.;
Agricultural machinery industry: tricycle carriages, harvesters, etc.;
Commercial vehicles: truck heads, vans, minivans, buses;
Passenger cars: domestic passenger cars

Construction ratio
The construction of RY-723 product is carried out according to the ratio of 1:5:8.5 (color paste: emulsion: pure water). The prepared bath is heated to the construction temperature and matured for 24 hours, and then trial production can be carried out according to the on-site coating process.
Construction technology
Pre-degreasing → degreasing → water washing → meter adjustment → phosphating → water washing → pure water washing → electrophoresis → post-rinsing → drying

Product packaging, storage, transportation and safety
Packaging: 50L plastic drum or 1 ton can, the packaging can be recycled by our company.
Storage: Store in a ventilated, dry and cool place. The storage period is 6 months at 0~35℃.
Transportation: This product is transported as non-dangerous goods, please do not turn it upside down.
Safety: Do not touch the skin for a long time or get into the eyes by mistake. Rinse with tap water and seek medical attention.

Product parameter adjustment
In order to improve product performance, the technical department may improve some technical data. We will notify the customer in written form, and after the customer's confirmation and consent, we will make adjustments to the supplied products.

Safety and health regulations
This product does not belong to the cargo materials listed in "GB6944-2005 Dangerous Goods Classification and Product Name Number". Pay attention to ventilation at the construction site.
Prevent splashing into eyes and mistaken entrance.
